Loading window
Dimensions (WxLxH)
2700х1750х3150 mm
One-time loading
100-300 kg
Power (rated)
5000 W
Pressure
4-6 atmospheres
Weight
1250 kg

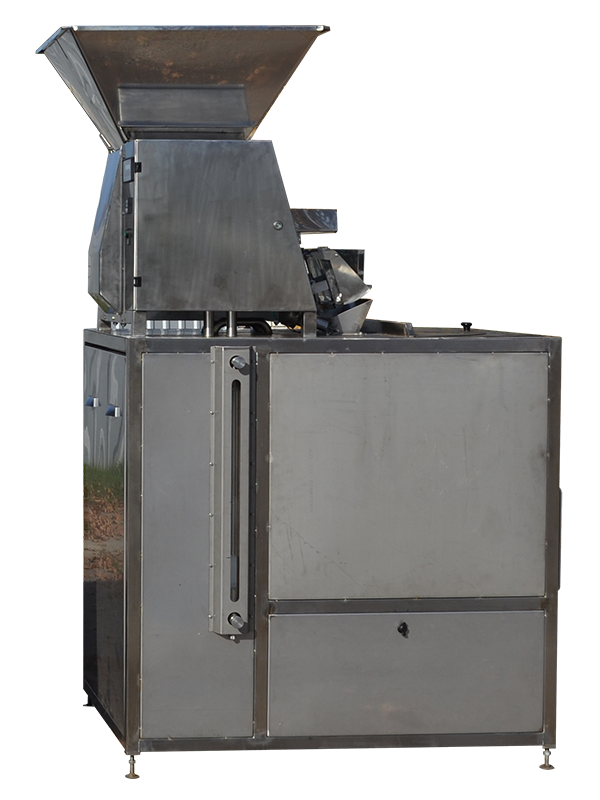

The automatic brine preparation station performs brine preparation, mixing, heating, and precise dosing into the diffusion chamber.
The automatic brine preparation station is a key component of the seed diffusion salting system, designed for brine preparation, heating, mixing, and precise dosing into the diffusion chamber.
The equipment automates the brine preparation process and maintains stable process parameters, directly contributing to consistent salting quality and improved production efficiency.
Heating the water to 90°C allows the salt to dissolve completely, producing a homogeneous brine ready for use in the production process.
The automatic control system ensures precise brine dosing according to the specified production parameters. As a result, the amount of unused brine does not exceed 5 liters per 150 kg of raw material, minimizing product losses and eliminating the need for continuous operator monitoring of the brine concentration.
The station is easily integrated into seed diffusion salting lines, helping automate production, ensure consistent product quality, and reduce manufacturing costs.
Characteristics of the brine preparation unit

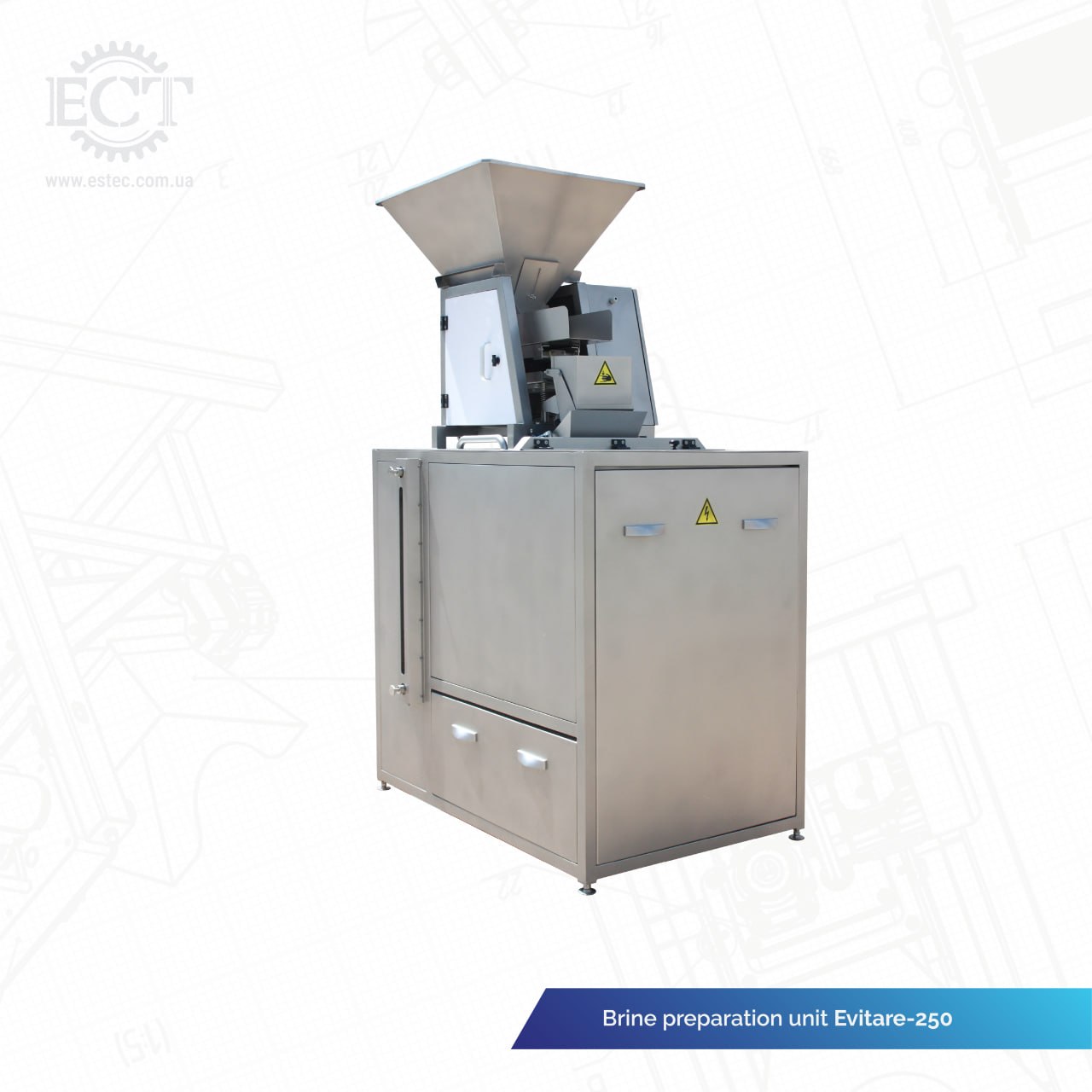

Evitare — 250
The brine preparation unit is customizable to your needs and preferences
| Name | Value |
|---|---|
| Steam flow rate | 100 kg/h |
| One-time loading | 100-300 kg |
| One load cycle | 15 min |
| Rated power | 5 kW |
| Air flow rate | 20-50 m3/h |
| Air pressure (min/max) | 4-6 atmospheres |
| Overall dimensions (LxWxH) | 2700х1750х3150 mm |
| Weight | 1250 kg |
Our customers
Large producers of seeds, nuts and snack products
