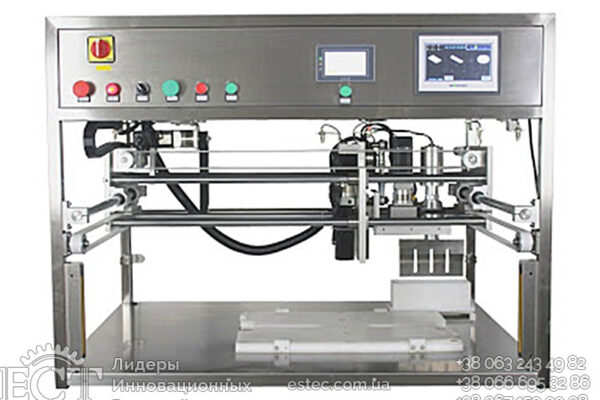

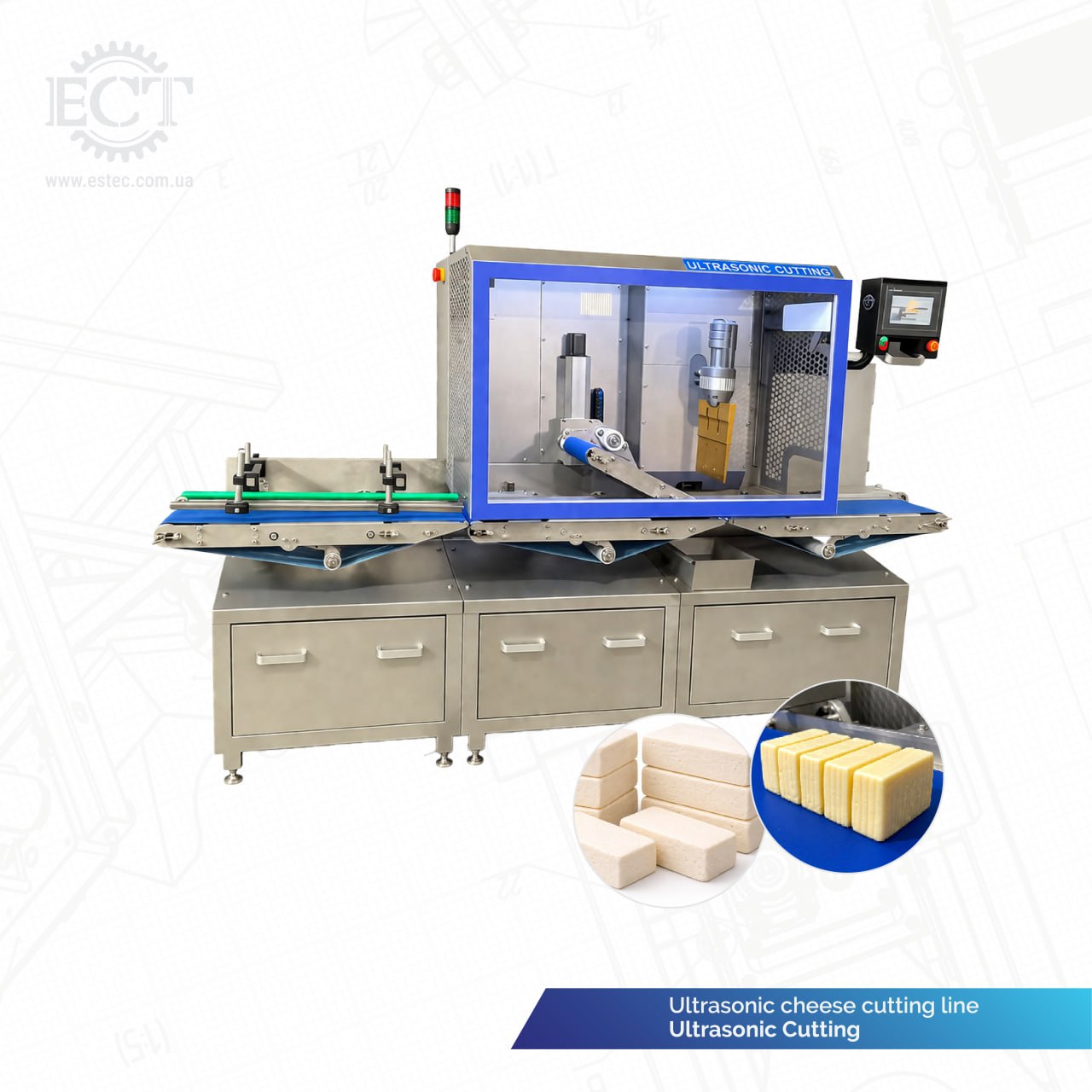

Ultrasonic knife Ultra Esatto – 400

Operating screen

Remote control 1

Remote control 2

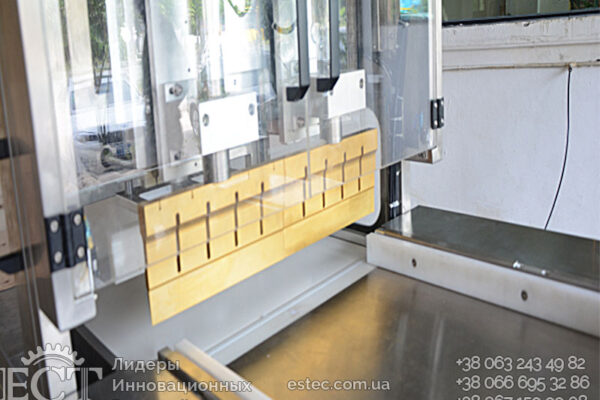

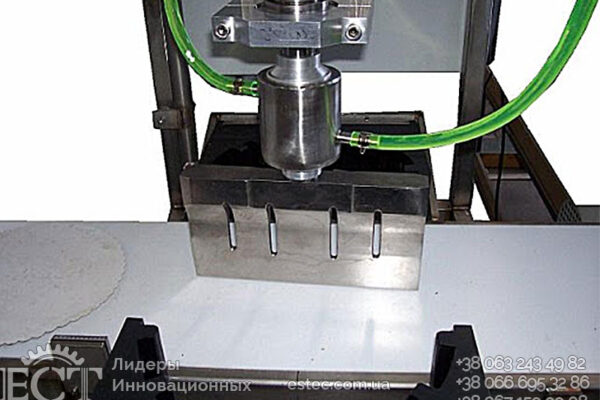

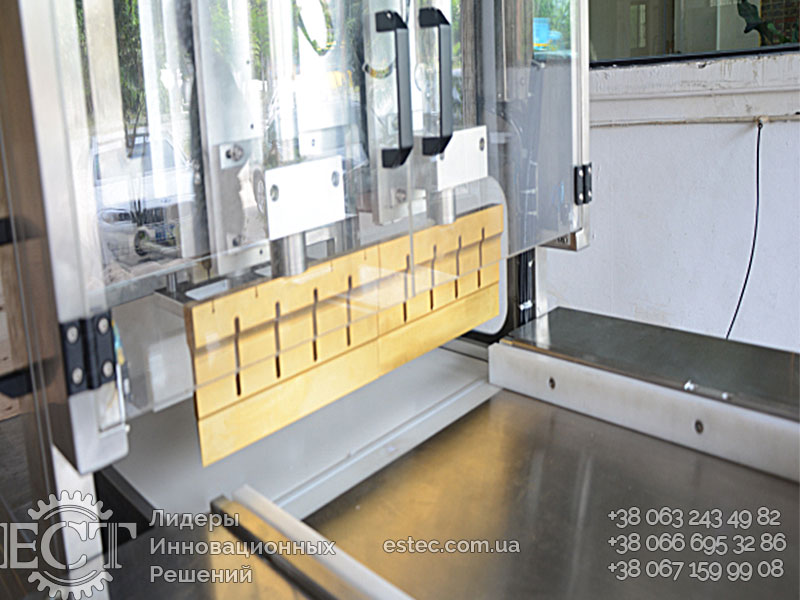

Ultrasonic knife

Dimensions (WxLxH)

1300х1280х1700 mm

Frequency

20-40 kW

Power (rated)

2000 W

Cutting range

400×600 mm

Cutting height

up to 60 mm

Check out the price

The USL ultrasonic knife from ECT is state-of-the-art equipment for the precise cutting of food products without deformation, sticking or wastage. Ultrasonic cutting technology utilises high-frequency mechanical vibrations of over 20 kHz, enabling a clean and even cut even on products with a complex structure.

When a product needs to be cut precisely, neatly and without wastage, ultrasonic technology delivers results that are difficult to achieve using traditional methods. Regardless of the operator, the products are always cut to the same high standard and with great precision.

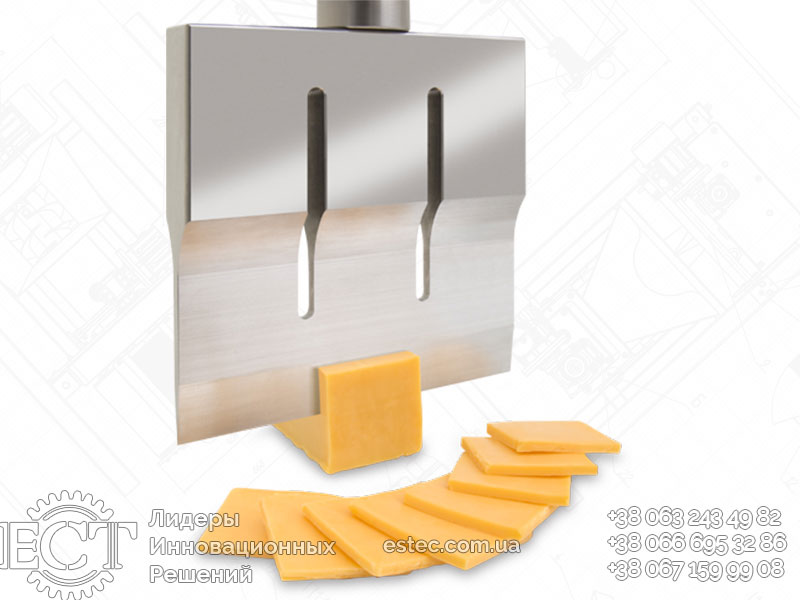

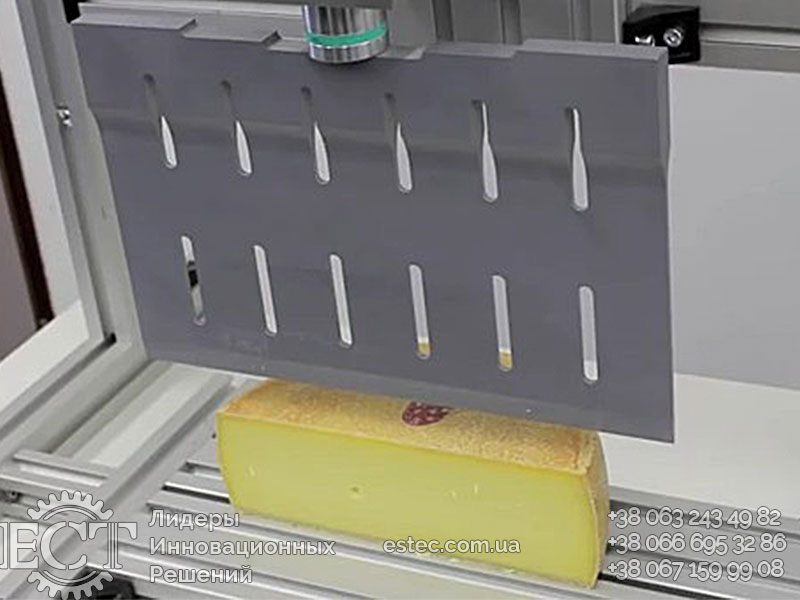

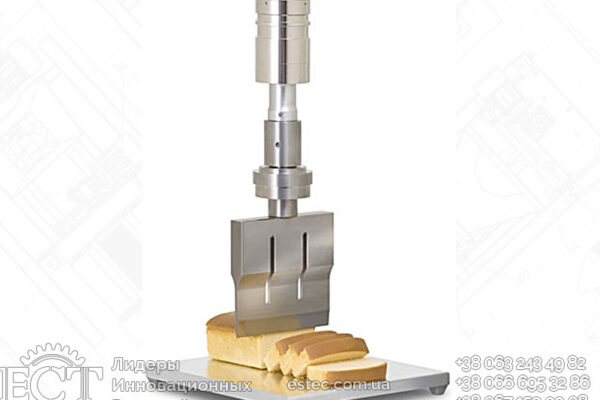

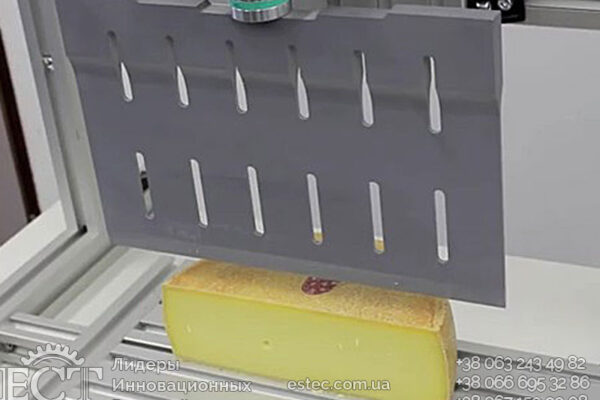

Ultrasonic cutting equipment is widely used for cutting cheese, meat and sausage products, bakery goods, confectionery, frozen foods and other foodstuffs. The technology is particularly effective when used with soft and semi-hard cheeses.

For soft cheeses, the ultrasonic knife ensures a neat appearance of the product and helps to reduce production losses by 5–10 per cent. When slicing cheeses such as Maasdam or Emmental, their characteristic marbling is preserved, whilst semi-hard cheeses with various inclusions are sliced without tearing or damaging the structure.

Ultrasonic cutting also minimises the risk of additional bacterial contamination on the surface after cutting. As a result, the shelf life of the finished product can be extended by 15–20%.

ECT designs and manufactures ultrasonic equipment for the food industry in accordance with customer requirements and international standards. We provide installation, commissioning and integration of the equipment into production lines.

Specifications of the ultrasonic cutting knife

Ultra Esatto — 400

Ultrasonic cutting unit is manufactured according to individual features and preferences

Name	Value
Voltage	220 V
Frequency	20 to 40 kHz
Power	2 kW
Cutting range	400×600 mm
Maximum cutting height	60 mm
Overall dimensions of generator (LxWxH)	1300х1280х1700 mm
Weight	300 kg

No matter which operator does the cutting, the product will always be cut equally professionally, consistently and accurately.
Ultrasonic production equipment helps optimize and speed up production without sacrificing product quality

We design and manufacture cutting equipment according to your requirements and in compliance with international standards.
We install the system and set up the ultrasonic food cutting line.
